Series SNA
Single-phase automatic voltage stabiliser
Series SNA
Single-phase automatic voltage stabiliser
Single-phase voltage stabiliser for fast and automatic correction of the output voltage in the event of mains voltage variations and consumption variations in the load.
Mains conditioner with galvanic isolation transformer and electrostatic screen, providing a perfectly stable output voltage, as well as attenuation and filtering of mains disturbances.
Features
- Galvanic isolation and continuous regulation by series booster between input/output and motorised variable autotransformer.
- High resolution digital controller.
- Display for output voltage visualisation.
- Magneto-thermal ON/OFF switch on the front panel.
- Terminal connection inside to protect against dangerous direct contacts.
Specifications
| Power (kVAr) | 1 ÷ 60 kVA |
| Input Voltage (V) | 230 V |
| Input Margin | ± 15% |
| Output Voltage (V) | 230 V |
| Output Accuracy | ± 1% |
| Response time | ≈ 20 V/s |
| Frequency | 50/60 Hz |
| Ambient Temperature | 30 ºC |
| PI | IP23 |
| Service | Continuo |
| Harmonic Distortion | Nula |
| Efficiency | >95% |
| Network conditioner | Transformador de aislamiento incorporado |
| Test Voltage | 3 kV |
| Regulations |
IEC/UNE-EN 61439-1 IEC/UNE-EN 61558-1 IEC/UNE-EN 60076-11 |
Quality Seals
Uses
- Data centres and processing.
- Telecommunications and broadcasting
- Hospitals and medical centres.
- Offices, hotels and shops.
- Industrial machinery, motors, robots, lasers.
- Sensitive electrical or electronic equipment

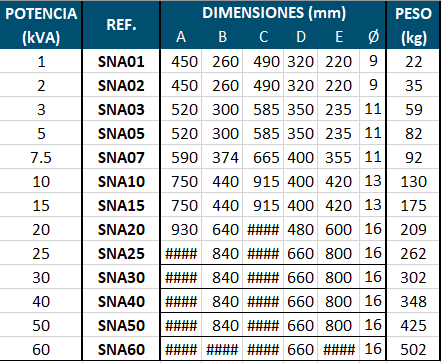

Product Versions
| References | POWER (kVA) | INTENSITY (A) | ||
|---|---|---|---|---|
| Entrance | Exit | |||
| SNA01 | 1 | 4.348 | 4.348 | Show details |
| SNA02 | 2 | 8.696 | 8.696 | Show details |
| SNA03 | 3 | 13.043 | 13.043 | Show details |
| SNA05 | 5 | 21.739 | 21.739 | Show details |
| SNA07 | 7.5 | 32.609 | 32.609 | Show details |
| SNA10 | 10 | 43.478 | 43.478 | Show details |
| SNA15 | 15 | 65.217 | 65.217 | Show details |
| SNA20 | 20 | 86.957 | 86.957 | Show details |
| SNA25 | 25 | 108.696 | 108.696 | Show details |
| SNA30 | 30 | 130.435 | 130.435 | Show details |
| SNA40 | 40 | 173.913 | 173.913 | Show details |
| SNA50 | 50 | 217.391 | 217.391 | Show details |
| SNA60 | 60 | 260.87 | 260.87 | Show details |
Show more +
* TORYTRANS reserves the right to modify the information in any time and
without prior notice. Design, dimensions or weight of the product could be
different.
