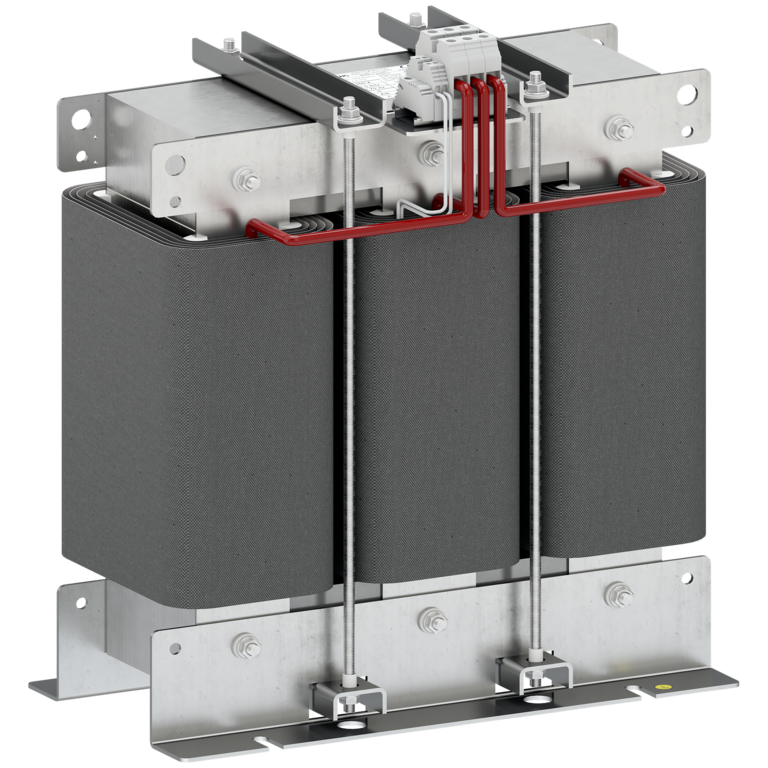

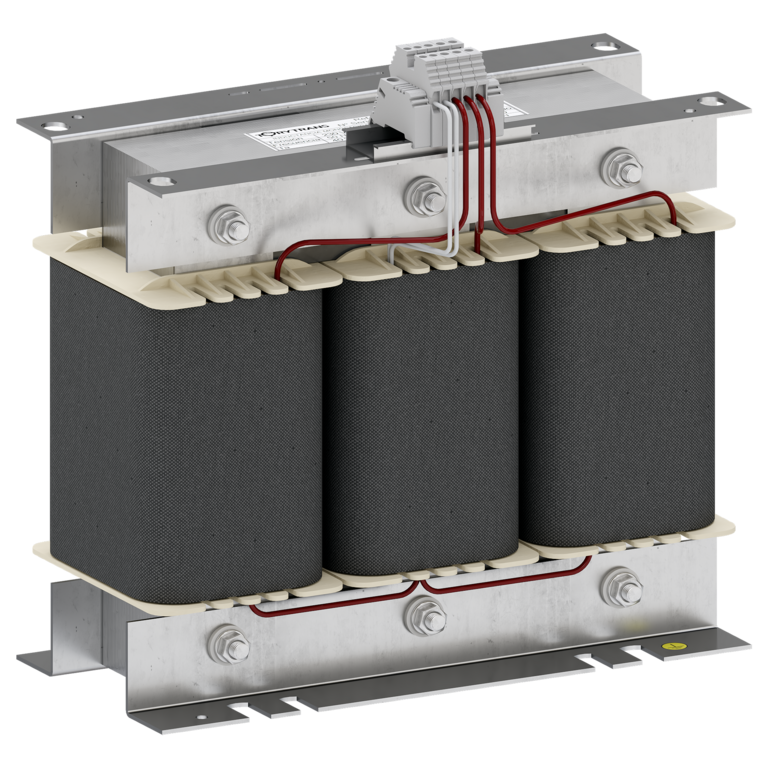

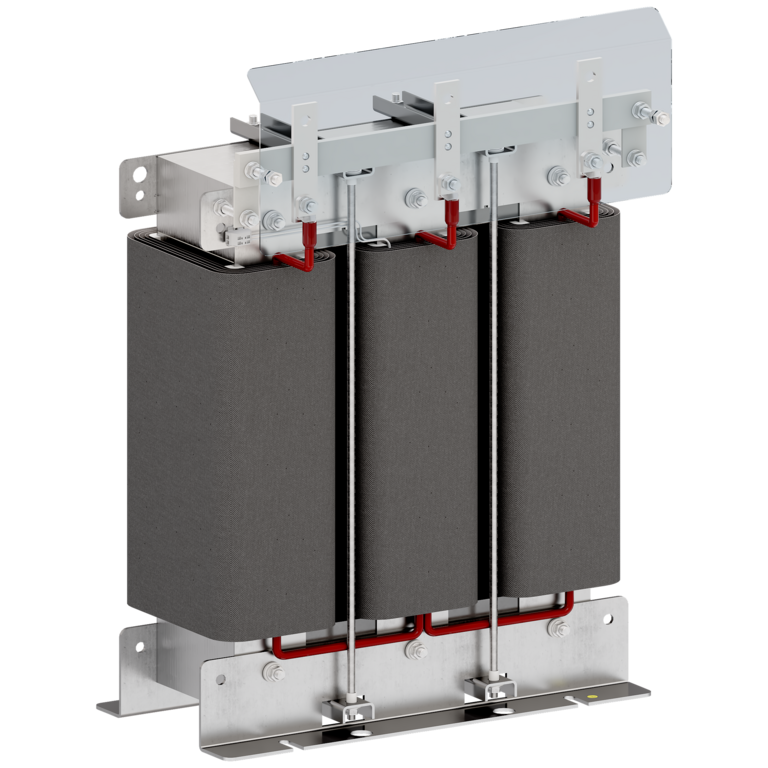

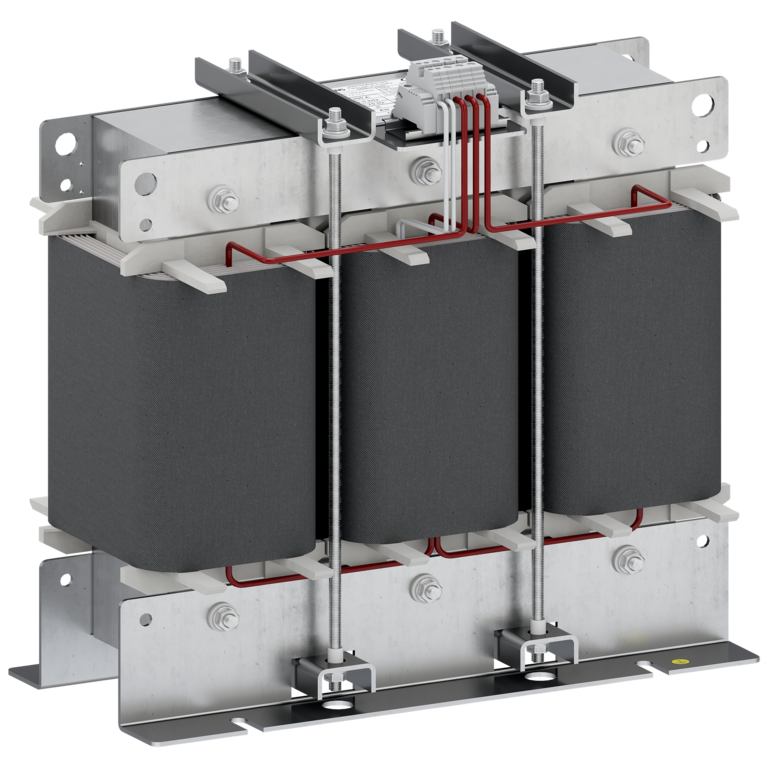

Three-phase inductance of inductive reactive load

Three-phase inductor intended to be connected between phases of a network to compensate capacitive current. It can also be used as a passive inductive load.

Request a quote

Features

Magnetic core made of magnetic sheet with low losses and high permeability.
Vacuum impregnation and oven-drying in epoxy varnish with high binding power to reduce noise and vibrations.
High protection against external agents such as humidity, dust and corrosion.
Connection by IP20 terminals up to IQT060. The rest incorporates polycarbonate terminal covers to protect against dangerous direct contact.
Optional possibility of cURus marking according to UL.

Specifications

Inductive Reactive Power	2,5 ÷ 100 kvar
Network Voltage (V)	400 V
Frequency	50 Hz
Inductance Tolerance	±10 %
Thermic Class	H (180 ºC)
Ambient Temperature	50ºC
PI	IP00
Test Voltage	3 kV
Regulations	IEC/UNE-EN 60076-6
UL Regulations	UL 5085-1 UL 5085-2 CAN/CSA C22.2 NO.66.1-06 CAN/CSA C22.2 NO.66.2-06

Quality Seals

Marcado CE

UK-CA

cRUs

Uses

Installations with long distances of MV cabling between transformer centres such as post areas and airports.

Electrical testing laboratories.

On-load converter testing.

Product Versions

References	IP	POWER	INTENSITY	INDUCTANCE	LOSSES
References	IP	(kVAr)	(A)	(mH)	(W)
IQT002	IP00	2.5	3.61	203.718	165	Show details
IQT005	IP00	5	7.22	101.859	260	Show details
IQT007	IP00	7.5	10.83	67.906	305	Show details
IQT010	IP00	10	14.43	50.93	355	Show details
IQT012	IP00	12.5	18.04	40.744	410	Show details
IQT015	IP00	15	21.65	33.953	470	Show details
IQT020	IP00	20	28.87	25.5	600	Show details
IQT025	IP00	25	36.08	20.4	720	Show details
IQT030	IP00	30	43.3	17	820	Show details
IQT040	IP00	40	57.74	12.7	1050	Show details
IQT050	IP00	50	72.17	10.2	1300	Show details
IQT060	IP00	60	86.6	8.5	1500	Show details
IQT075	IP00	75	108.25	6.8	1700	Show details
IQT100	IP00	100	144.34	5.1	2000	Show details

Show more +

Tech sheet complete IQT

* TORYTRANS reserves the right to modify the information in any time and without prior notice. Design, dimensions or weight of the product could be different.
