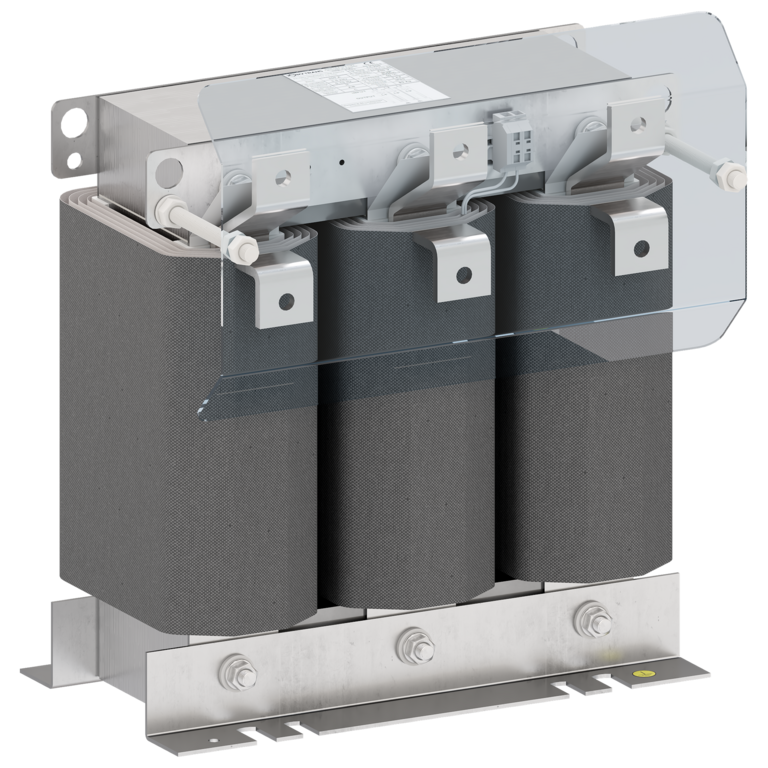

Three-phase inductance three-phase harmonic rejection filter

Three-phase inductance harmonic rejection filter for reactive power compensation capacitors.

Features

Magnetic core made of magnetic sheet with low losses and high permeability.
Vacuum impregnation and oven-drying in epoxy varnish with high binding power to reduce noise and vibrations.
High protection against external agents such as humidity, dust and corrosion.
Connection by IP20 terminals up to IRT010 / IRTH012. The rest incorporates polycarbonate terminal covers that protect against dangerous direct contact.
Optional possibility of cURus marking according to UL.

Specifications

Network Voltage (V)	400 V
Frequency	50 Hz
Harmonic Distortion	Serie IRT: 3º= 0,5% / 5º= 6% / 7º= 5% / 11º= 3,5% / 13º=3% Serie IRTH: 3º= 3,8% / 5º=6% / 7º= 5% / 11º= 3,5% / 13º=3%
Inductance Tolerance	± 5%
Overload	1,1 Iₙ
Linearity	1,6 Iₙ
Thermic Class	H (180 ºC)
Ambient Temperature	50ºC
PI	IP00
Test Voltage	3 kV
Heat protector	Contacto NC rearmable 250 V 6 A
Regulations	(Hasta IRT050) IEC/UNE-EN 61558-2-22 (Hasta IRT060) IEC/UNE-EN 60076-6
UL Regulations	UL 5085-1 UL 5085-2 CAN/CSA C22.2 NO.66.1-06 CAN/CSA C22.2 NO.66.2-06

Quality Seals

Marcado CE

UK-CA

Opcional: cRUs

Uses

Suitable for the protection of reactive compensation capacitors in installations with the presence of harmonics.

In networks with homopolar harmonics 3º 9º of single-phase electronic single-phase loads such as offices, datacenter, callcenter select IRTH series. For other installations and industry without homopolar harmonics, select IRT series.

Product Versions

References	IP	POWER STEP	CONDENSER	INTENSITY	INDUCTANCE	LOSSES	POWER INDUCTANCE	FREQUENCY
References	IP	(kVAr)	CONDENSER	(A)	(mH)	(W)	(VAr)	(Hz)
IRT002	IP00	2.5	440 V 2,8 kVAr	4.1	15.331	44	242.89	189	Show details
IRT005	IP00	5	440 V 5,6 kVAr	8.2	7.665	72	485.75	189	Show details
IRT007	IP00	7.5	440 V 8,4 kVAr	12.3	5.11	90	728.62	189	Show details
IRT010	IP00	10	440 V 11,3 kVAr	16.4	3.833	110	971.62	189	Show details
IRT012	IP00	12.5	440 V 14,1 kVAr	20.5	3.066	140	1214.37	189	Show details
IRT015	IP00	15	440 V 16,9 kVAr	24.5	2.555	150	1445.42	189	Show details
IRT020	IP00	20	440 V 22,6 kVAr	32.7	1.916	155	1930.91	189	Show details
IRT025	IP00	25	440 V 28,1 kVAr	40.9	1.533	165	2416.91	189	Show details
IRT030	IP00	30	440 V 33,8 kVAr	49.1	1.278	185	2903.79	189	Show details
IRT040	IP00	40	440 V 45,0 kVAr	65.4	0.958	200	3861.82	189	Show details
IRT050	IP00	50	440 V 56,3 kVAr	81.8	0.767	250	4836.97	189	Show details
IRT060	IP00	60	440 V 67,5 kVAr	98.2	0.639	285	5807.58	189	Show details
IRT075	IP00	75	440 V 84,4 kVAr	122.7	0.511	365	7250.72	189	Show details
IRT100	IP00	100	440 V 112,5 kVAr	163.6	0.383	440	9661.32	189	Show details
IRTH002	IP00	2.5	480 V 3,1 kVAr	4.1	32.951	70	522.044	134	Show details
IRTH005	IP00	5	480 V 6,2 kVAr	8.2	16.476	92	1044.099	134	Show details
IRTH007	IP00	7.5	480 V 9,3 kVAr	12.3	10.984	130	1566.149	134	Show details
IRTH010	IP00	10	480 V 12,4 kVAr	16.4	8.238	150	2088.199	134	Show details
IRTH012	IP00	12.5	480 V 15,5 kVAr	20.5	6.59	175	2610.248	134	Show details
IRTH015	IP00	15	480 V 18,6 kVAr	24.5	5.492	200	3106.884	134	Show details
IRTH020	IP00	20	480 V 24,8 kVAr	32.7	4.119	215	4150.97	134	Show details
IRTH025	IP00	25	480 V 31 kVAr	40.9	3.295	250	5195.062	134	Show details
IRTH030	IP00	30	480 V 37,2 kVAr	49.1	2.746	385	6239.156	134	Show details
IRTH040	IP00	40	480 V 49,6 kVAr	65.4	2.059	460	8301.941	134	Show details
IRTH050	IP00	50	480 V 62 kVAr	81.8	1.648	500	10390.124	134	Show details
IRTH060	IP00	60	480 V 74,4 kVAr	98.2	1.373	520	12478.313	134	Show details
IRTH075	IP00	75	480 V 93 kVAr	122.7	1.098	620	15585.186	134	Show details
IRTH100	IP00	100	480 V 124 kVAr	163.6	0.824	680	20780.248	134	Show details

Show more +

Tech sheet complete IRT

* TORYTRANS reserves the right to modify the information in any time and without prior notice. Design, dimensions or weight of the product could be different.
